BOSCH - Rotary Hammer with SDS Plus - GBH 2-26
Fast all-rounder for daily use
- Improved performance for a fast drilling rate and high chiselling removal rate
- Reliable and robust with long lifetime due to high-quality components
- Wide range of applications for drilling, hammer drilling and chiselling
|
TECHNICAL SPECIFICATIONS OF GBH 2-26 |
|
|
Rated input power |
830 W |
|
Weight |
2.7 kg |
|

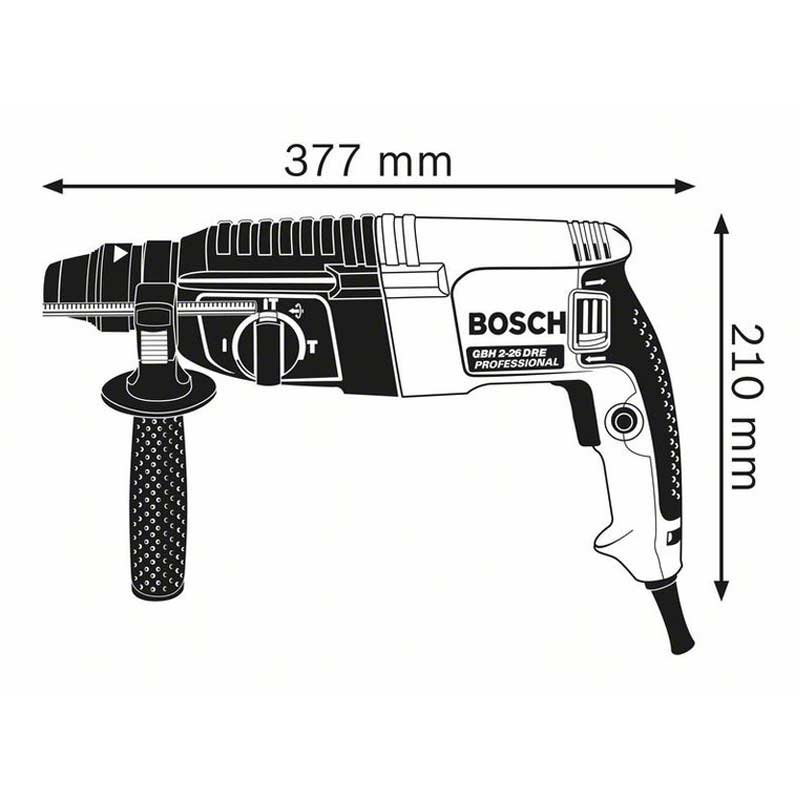

Tool dimensions (width) |
83 mm |
|
Tool dimensions (length) |
377 mm |
|
Tool dimensions (height) |
210 mm |
|
Tool holder |
SDS plus |
|
PERFORMANCE DATA : |
|
|
Impact energy |
2.7 J |
|
Impact rate at rated speed |
0 – 4,000 bpm |
|
Rated speed |
0 – 900 rpm |
|
Drilling Range : |
|
|
Drilling dia. concrete, hammer drill bits |
4 – 26 mm |
|
Opt. appl. range concrete, hammer drill bits |
8 – 16 mm |
|
Drilling diameter in concrete with core cutters |
16 – 68 mm |
|
Max. drilling diameter masonry, core cutters |
68 mm |
|
Max. drilling diameter in metal |
13 mm |
|
Max. drilling diameter in wood |
30 mm |
|
Total Vibration Values (Hammer Drilling in concrete) |
|
|
Vibration emission value ah |
17.5 m/s² |
|
Uncertainty K |
1.5 m/s² |
|
Total Vibration Values (Chiselling) |
|
|
Vibration emission value ah |
14 m/s² |
|
Uncertainty K |
1.5 m/s² |
|
Hammer Drilling in concrete : |
|
|
Vibration emission value ah |
17.5 m/s² |
|
Uncertainty K |
1.5 m/s² |
|
Chiselling : |
|
|
Vibration emission value ah |
14 m/s² |
|
Uncertainty K |
1.5 m/s² |
