GLL 2-20
Self-Leveling 360° Horizontal Cross-Line Laser
Four-mode functionality, including single vertical, single horizontal, horizontal/vertical combination and lock/manual modes. The 360° coverage gives the user one setup point for an entire room. The GLL 2-20 range is 65 Ft. diameter with accuracy of ± 3/16 In. at 30 Ft. Smart Pendulum System features self-leveling function and indication for an out-of-level condition. Pendulum lock protects the unit for safe transport to the jobsite. The BM3 positioning device easily holds the laser and attaches to objects for precise positioning.

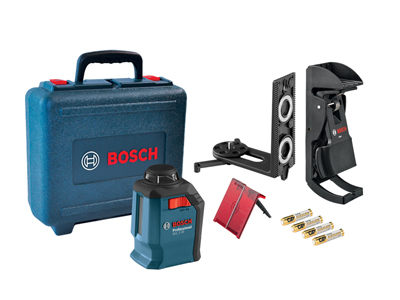

INCLUDES
- (1) GLL 2 Self-Leveling 360° Horizontal Cross-Line Laser
- (1) BM3 Positioning Device
- (1) Mounting Bracket
- (1) Laser Target
- (4) AA Batteries
- (1) Carry Case
BENEFITS
- Bright 360° horizontal cross-line laser for one setup point
- Smart pendulum system self levels
- 120° vertical projection for cross-line applications
- Pendulum lock for safe transport
- Multi-purpose positioning device for versatile use
- The GLL 2-20 range is 65 Ft. diameter; 3/16 In. accuracy
Specifications
| IP Rating | IP 54 |
| Laser Beam Color | Red |
| Laser Diode | Class II 635 - 650 nm |
| Leveling Type | Self-Leveling, Up to 4° |
| Material | Plastic composite |
| Mount Threading | 1/4-20 |
| Operating Temperature | 41° F / 5° C ~ 104° F / 40° C |
| Range | Up to 65-ft. |
| Weight | 0.7lb |
